Get to know your mask
Start with where the mask sits. Compare nasal pillows, nasal masks, and full face masks through three examples you can see up close.
Explore the three styles
Fisher & Paykel Healthcare

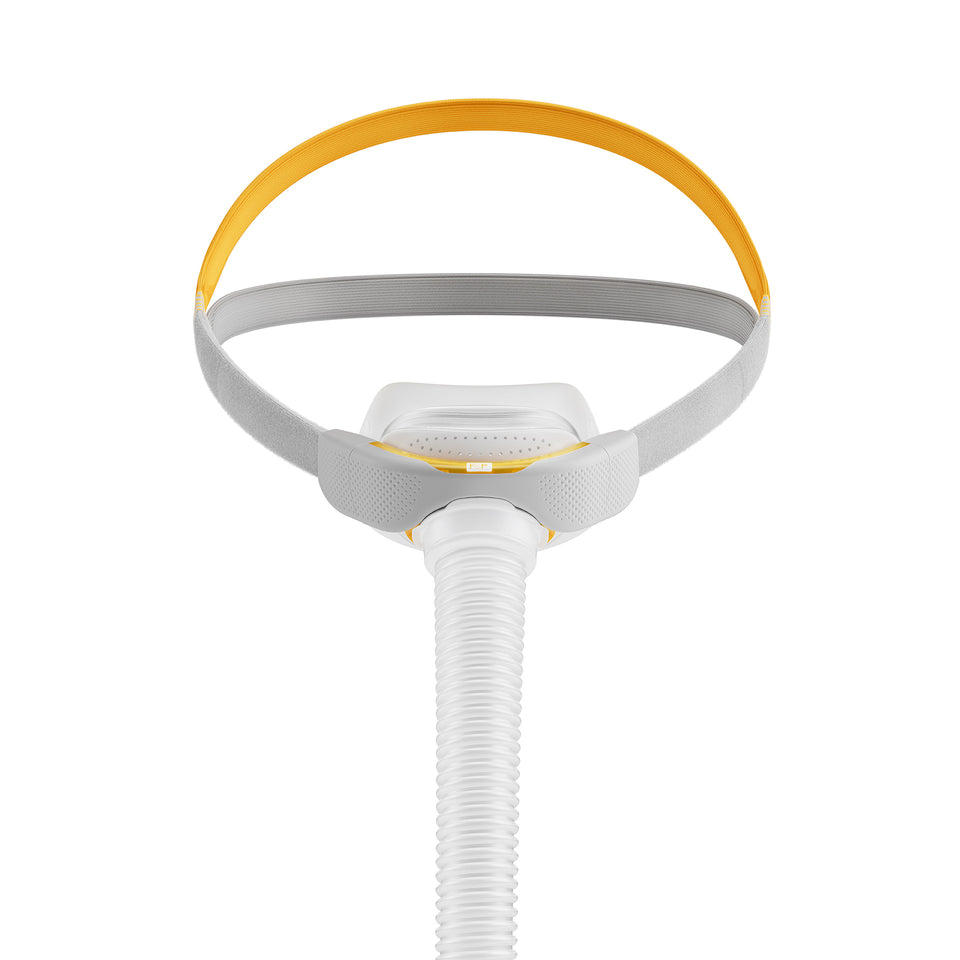

F&P Solo Pillows
Where it seals
At the nostrils
Soft pillows sit at the nostril openings, leaving the mouth uncovered. This style has a small contact area around the nose.
About this example
Solo’s AutoFit headgear adjusts with a stretch and touch. Its AirPillow cushion seals in and around the nostrils.
ResMed

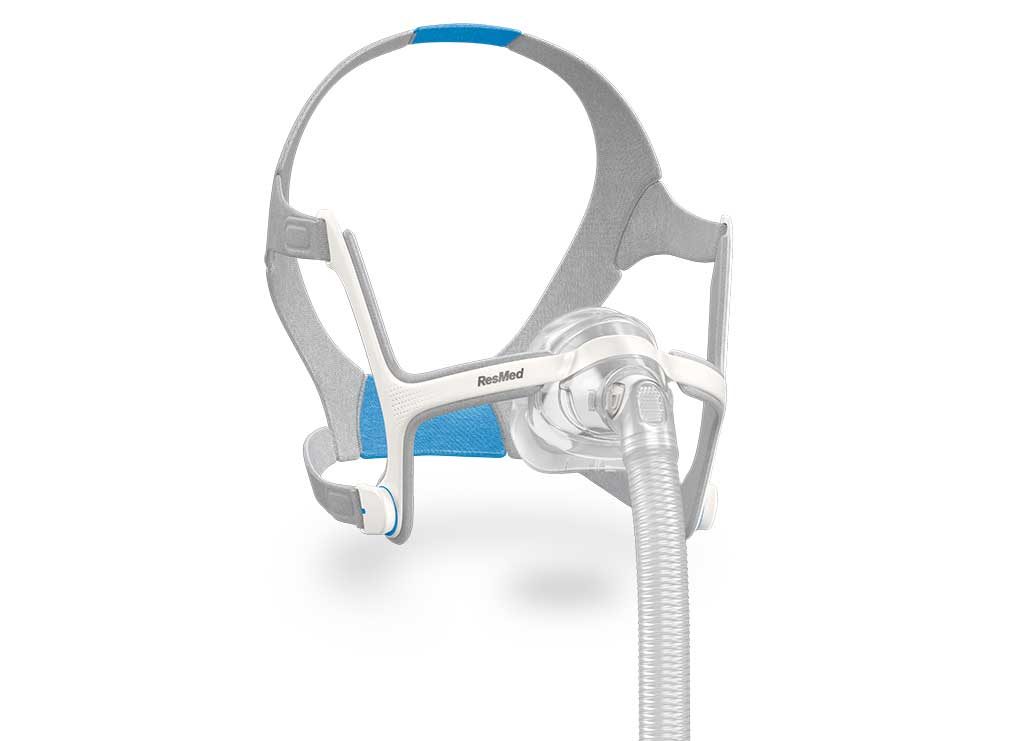

ResMed AirTouch N20
Where it seals
Over the nose
A nasal mask seals around the nose and leaves the mouth free. The AirTouch N20 uses memory foam where the cushion meets your face.
About this example
The AirTouch N20 is the memory foam option in the N20 family. Its front elbow disconnects from the tubing without taking the mask off.
Philips Respironics

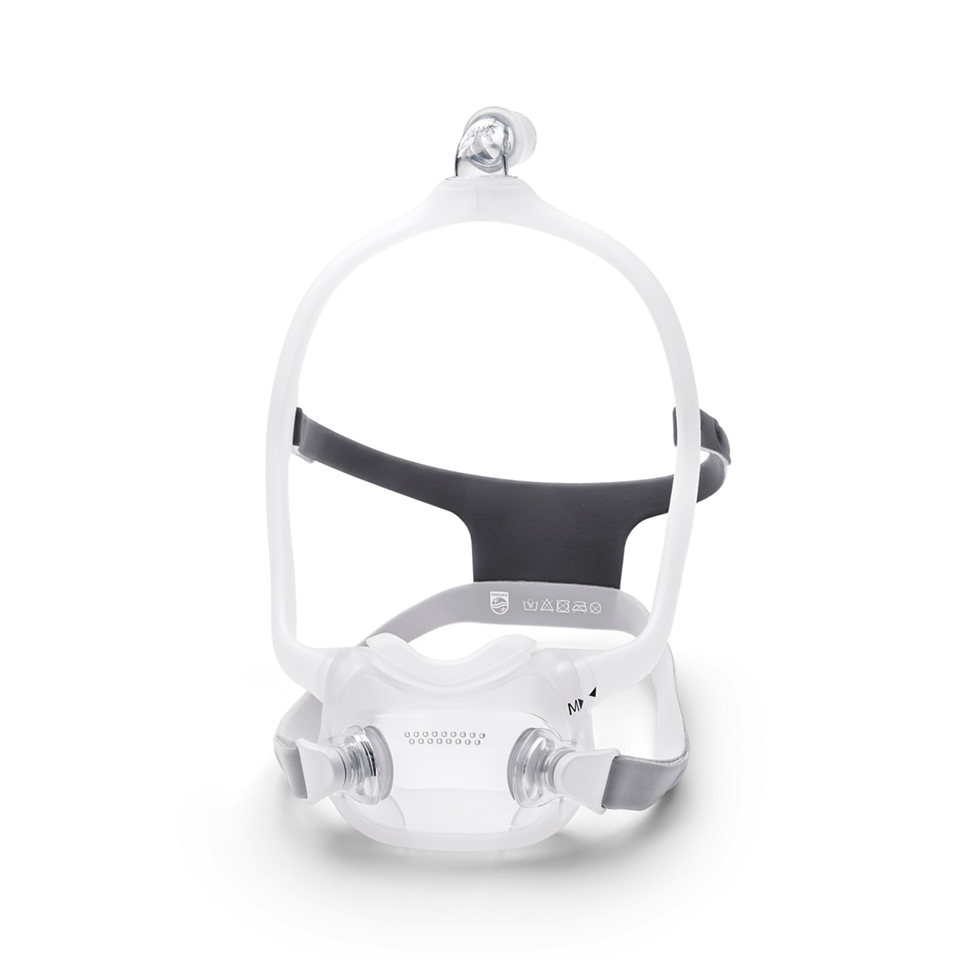

DreamWear Full Face
Where it seals
Under the nose + over the mouth
Full face masks accommodate breathing through the nose or mouth. DreamWear’s cushion sits beneath the nose and seals around the mouth, leaving the nasal bridge clear.
About this example
The hose connects at the top of the head. Air travels through the frame to the under-the-nose full face cushion.
Models shown are examples of each style, not a statement of current stock. Seal illustrations are simplified; fit varies by face and cushion size.
The details, side by side
Coverage defines the category. Cushion materials and tube connections depend on the model.
A nasal cradle sits beneath the nose and leaves the mouth open. DreamWear Full Face sits beneath the nose and covers the mouth. Check the full model name when comparing masks or replacement cushions.
From style to fit
Tell your fitting team about nasal congestion, mouth leaks, skin sensitivity, and your usual sleep position. A comfortable seal matters more than choosing by appearance alone.
Read the mask-selection guideGeneral education. Follow your care team’s guidance and the instructions supplied with your mask. Sources checked October 19, 2026.
Product photos: Fisher & Paykel Healthcare (via Resolve Sleep), ResMed, and Philips Respironics. Product names belong to their respective owners.
